AIoT 物联网和工业控制

香蕉派 NB-IoT Linaro 96Boars采用高通Quectel BC95设计

NB-IoT module:

  • NB-IoT module:Quectel BC95-B5/8/20 or BC95-G
  • Model and Frequency band:

SIM card:

  • Micro SD SIM Slot
  • e-SIM optional(footprint reserved on the board)
  • Antenna: IPEX antenna connector

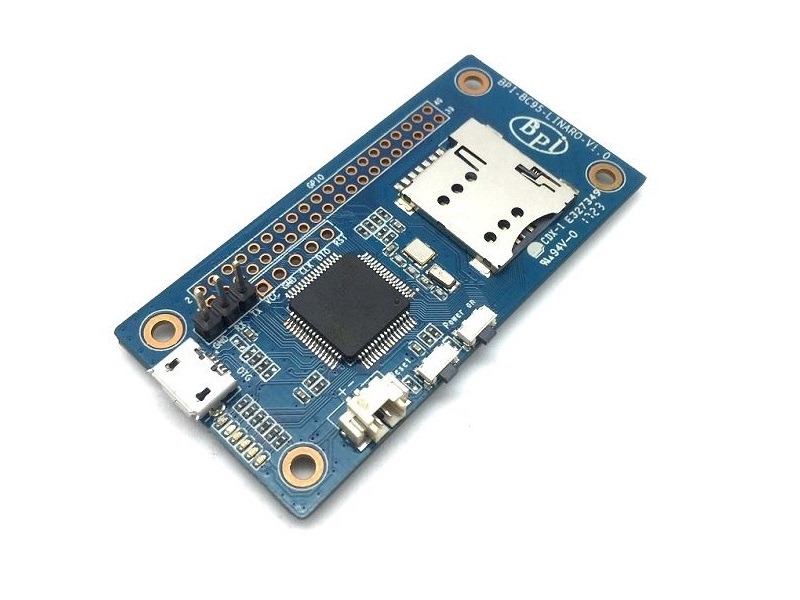

    BPI NB-IoT Linaro 96Boars with BC95 module developent board ,this is banana pi team first board for Linaro 96Board standard development board.

    1.NB-IoT module:

    • NB-IoT module:Quectel BC95-B5/8/20 or BC95-G
    • Model and Frequency band:


    SIM card:
    • Micro SD SIM Slot
    • e-SIM optional(footprint reserved on the board)
    • Antenna: IPEX antenna connector

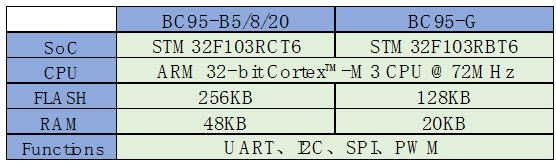

    2,MCU:

    Hardware interface:


    Hardware spec:
    HardwareSpecification of BPi BC95-LINARO
    Soc STM32F103RBT6
    CPU ARM 32-bit Cortex™-M3 CPU @72MHz
    SDRAM size 20 KB
    Flash size 128KB
    Power 5V/2A via MicroUSB / 2PIN Battery Connector
    Low-level peripherals 40 Pins Header (2.0mm Pitch), 32×GPIOs,Some of which can be used for specific functions including UART, I2C, SPI, PWM
    On board Network Quectel BC95
    On board SIM MicroSD SIM SloteSIM(option)
    USB 1 USB 2.0 host
    Buttons Reset button, User button
    Leds 1 Power status Led and 5 other Leds
    Sizes 60mm×30mm
    Weight 10g

    Online wiki development document: https://wiki.banana-pi.org/BPI_NB-IoT_Linaro_96Boars
