Banana Pi BPI-M2 Zero with Allwinner H3(option H2+/H5)chip design with 512M RAM

  • CPU: Allwinner H2+/H3, Quad-core Cortex-A7
  • 512MB DDR 3 SDRAM
  • WiFi & BT onboard
  • Mini HDMI
  • 40 Pin Raspberry Pi-compatible GPIO, including UART, SPI, I2C, etc
  • Same size as Raspberry Pi Zero W
.

    The Banana Pi M2 Zero is an ultra compact single board computer which measures only 60mm*30mm. Its external interfaces are the same as the Raspberry Pi Zero W, and it will fit almost all cases and accessories for the Zero W. It uses the quad-core Cortex A7 Allwinner H3(option H2+ H5) processor, with 512MB RAM. It‘s ideal for light-weight systems and space-limited applications. Like other members of the Banana Pi family, it supports both Linux and Android operating systems.

    Banana Pi M2 Zero: Low-Cost, Quad Core SBC

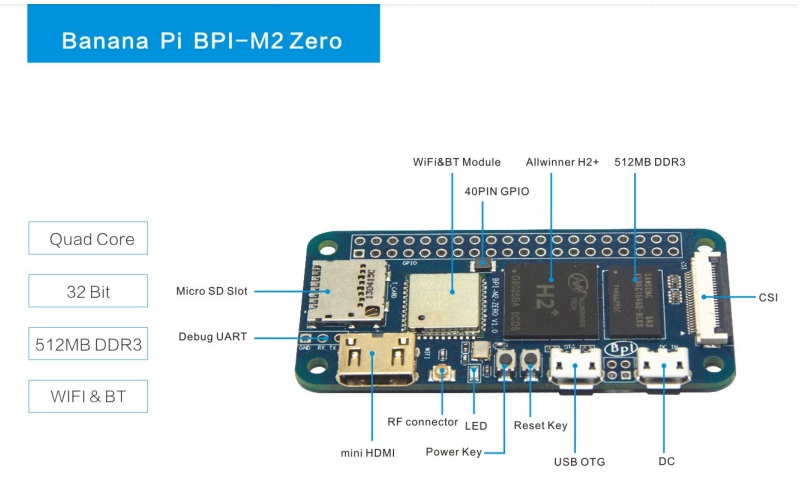

    Hardware interface:

    Haredware Spec:
    HardWare Specification of Banana pi BPI-P2 Zero VS BPI-M2 zero VS Raspberry Pi Zero W
    Module Banana Pi BPI-P2 Zero Banana Pi BPI-M2 Zero Raspberry Pi Zero W
    CPU H3 Quad-core Cortex-A7 H265/HEVC 1080P H3 Quad-core Cortex-A7 H265/HEVC 1080P Broadcom BCM2835 32 Bit 1 GHz ARM1176JZF-S single-core
    GPU Mali400MP2 GPU @600MHz,Supports OpenGL ES 2.0 Mali400MP2 GPU @600MHz,Supports OpenGL ES 2.0 VideoCore IV
    Memory (SDRAM) 512M DDR3(shared with GPU) 512M DDR3(shared with GPU) 512 MB DDR2
    Onboard Storage TF card (Max. 64GB) TF card (Max. 64GB) TF card (Max. 64GB)
    Onboard Network 100M LAN NOPE (but can extension with PIN define) NOPE
    PoE power PoE function support NOPE NOPE
    Onboard flash 8G eMMC NOPE NOPE
    Onboard WIFI SDIO AP6212(option AP6181、AP6335) SDIO AP6212(option AP6181、AP6335) 802.11n wireless, Bluetooth 4.1
    Video decoding 1080p@60fps,H.264 Video encoding 1080p@30fps,H.264 1080p@60fps,H.264 Video encoding 1080p@30fps,H.264 1080p30 H.264/MPEG-4 AVC high-profile decoder and encoder
    Video input A CSI input connector Camera A CSI input connector Camera CSI camera connector
    Video Outputs mini HDMI 1.4,1080P@30fps, DHCP mini HDMI 1.4,1080P@30fps, DHCP Mini HDMI and USB On-The-Go ports
    Audio Output Mini HDMI Mini HDMI Mini HDMI
    Power Source Micro USB with 5V/2A or PoE power Micro USB with 5V/2A 5V/2A
    USB 2.0 Ports one USB 2.0 OTG one USB 2.0 OTG one USB 2.0 OTG
    Buttons Power Button, Reset Button Power Button, Reset Button Composite video and reset headers
    Low-level peripherals 40 Pins Header,compatible with Raspberry Pi 3 40 Pins Header,compatible with Raspberry Pi 3 40 PIN
    uart GPIO(1x3) pin UART, ground UART, ground UART
    LED Power led & Status led Power led & Status led Power Status LED
    IR N/A N/A N/A
    Supported OS android, linux android, linux Linux
    Product size 65mm X 52.5mm 65mm × 30mm 65mm x 30mm
    Weight 30g 15g 9g
    Online Wiki developments:https://wiki.banana-pi.org/Banana_Pi_BPI-M2_ZERO

    Banana Pi BPI-M2-ZERO BENCHMARKS & REVIEW:
    NO COMPRES RASPBERRY PI ZERO - BANANA PI M2 ZERO LA DESTRUYE! RETRORANGE PI ALTERNATIVA ORANGE PI
